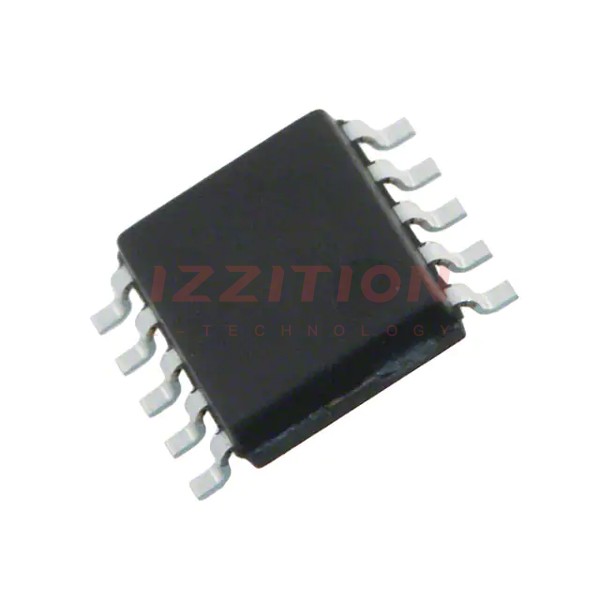

| Part Number | LB1948MC-AH | LB1948MC-BH | LB1948MC-ZH | LB1848MC-AH |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | Bipolar | Bipolar | Bipolar | Bipolar |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) |
| Interface | Parallel | Parallel | Parallel | Parallel |
| Technology | Bipolar | Bipolar | Bipolar | Bipolar |
| Step Resolution | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | 800mA | 800mA | 800mA | 800mA |
| Voltage - Supply | 2.5V ~ 16V | 2.5V ~ 16V | 2.5V ~ 16V | 2.5V ~ 7.5V |
| Voltage - Load | 2.5V ~ 16V | 2.5V ~ 16V | 2.5V ~ 16V | 2.5V ~ 7.5V |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-LSOP (0.173", 4.40mm Width) | 10-LSOP (0.173", 4.40mm Width) | 10-LSOP (0.173", 4.40mm Width) | 10-SOP (0.173", 4.40mm Width) |
| Supplier Device Package | 10-MFPSK | 10-MFPS | 10-MFPSK | 10-MFPS |
