Please send RFQ , we will respond immediately.

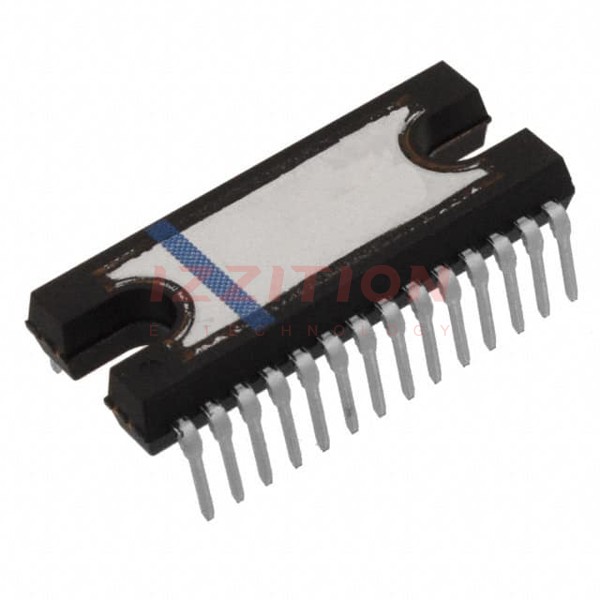

| Part Number | LB1845-E | LB1847-E | LB1845L-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | Bipolar | Bipolar | - |
| Motor Type - AC, DC | - | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | - |
| Output Configuration | Half Bridge (4) | Half Bridge (4) | - |
| Interface | Parallel | Parallel | - |
| Technology | Bipolar | Bipolar | - |
| Step Resolution | 1/2, 1/4 | - | - |
| Applications | General Purpose | General Purpose | - |
| Current - Output | 1.5A | 1.5A | - |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - |
| Voltage - Load | 10V ~ 44.5V | 10V ~ 45V | - |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) Exposed Pad | 28-SDIP (0.500", 12.70mm) Exposed Pad | 28-SDIP (0.500", 12.70mm) Exposed Pad |
| Supplier Device Package | 28-HDIP | 28-HDIP | 28-DIP |
