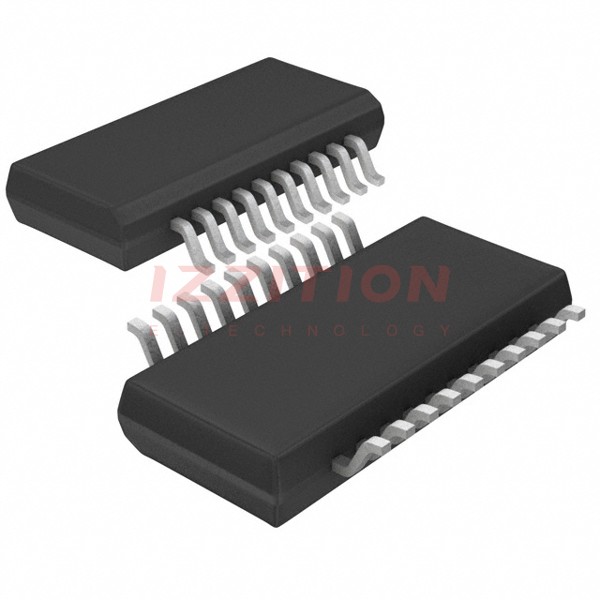

| Part Number | LB11967V-TLM-E | LB11967V-TLM-H | LB11961V-TLM-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushed DC |
| Function | Controller - Speed | Controller - Speed | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Pre-Driver - Half Bridge (2) | Pre-Driver - Half Bridge (2) | Half Bridge (2) |
| Interface | PWM | PWM | Parallel |
| Technology | - | - | Bipolar |
| Step Resolution | - | - | - |
| Applications | Fan Controller | Fan Controller | Fan Motor Driver |
| Current - Output | - | - | 1A |
| Voltage - Supply | 6V ~ 16V | 6V ~ 16V | 4.5V ~ 16V |
| Voltage - Load | - | - | 4.5V ~ 16V |
| Operating Temperature | -30°C ~ 95°C (TA) | -30°C ~ 95°C (TA) | -30°C ~ 90°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) | 20-LSSOP (0.173", 4.40mm Width) | 16-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-SSOP | 20-SSOP | 16-SSOP |
