Please send RFQ , we will respond immediately.

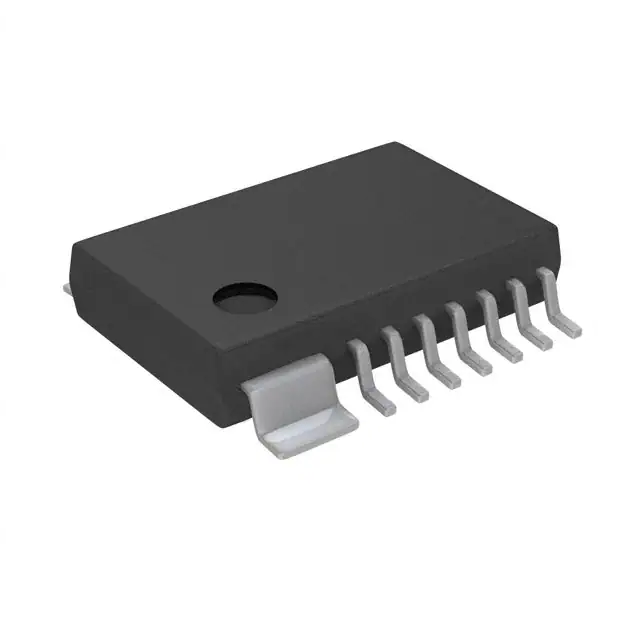

| Part Number | LB11961-TLM-E | LB11961V-TLM-E | LB11961-TLM-H |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Interface | Parallel | Parallel | Parallel |
| Technology | Bipolar | Bipolar | Bipolar |
| Step Resolution | - | - | - |
| Applications | Fan Motor Driver | Fan Motor Driver | Fan Motor Driver |
| Current - Output | 1A | 1A | 1A |
| Voltage - Supply | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V |
| Voltage - Load | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V |
| Operating Temperature | -30°C ~ 90°C (TA) | -30°C ~ 90°C (TA) | -30°C ~ 90°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs | 16-LSSOP (0.173", 4.40mm Width) | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs |
| Supplier Device Package | 14-HSSOP | 16-SSOP | 14-HSSOP |
