Please send RFQ , we will respond immediately.

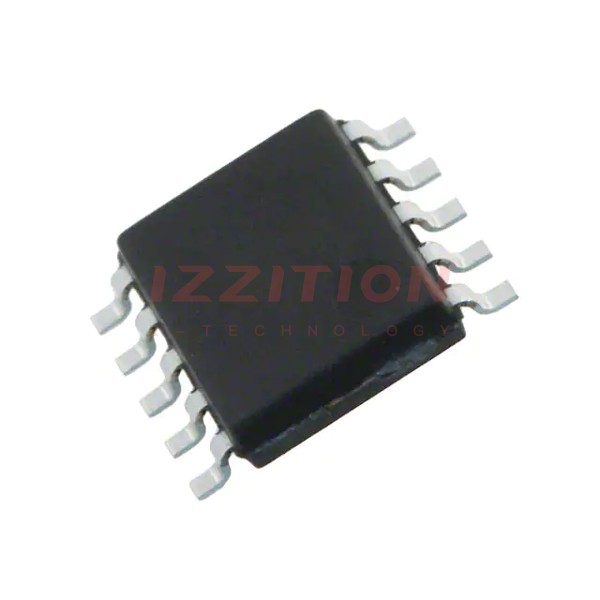

| Part Number | LB11862MC-AH | LB1862MC-AH | LB11861MC-AH |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Interface | On/Off | On/Off | PWM |
| Technology | Bipolar | Bipolar | Bipolar |
| Step Resolution | - | - | - |
| Applications | Fan Motor Driver | Fan Motor Driver | Fan Motor Driver |
| Current - Output | 800mA | 500mA | 1.2A |
| Voltage - Supply | 3.8V ~ 16.8V | 3.8V ~ 16.8V | 4.5V ~ 16V |
| Voltage - Load | 3.8V ~ 16.8V | 3.8V ~ 16.8V | 4.5V ~ 16V |
| Operating Temperature | -40°C ~ 85°C (TA) | -30°C ~ 90°C (TA) | -30°C ~ 90°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | 10-LSOP (0.173", 4.40mm Width) | 10-LSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 10-SOIC | 10-MFPSK | 10-MFPSK |
