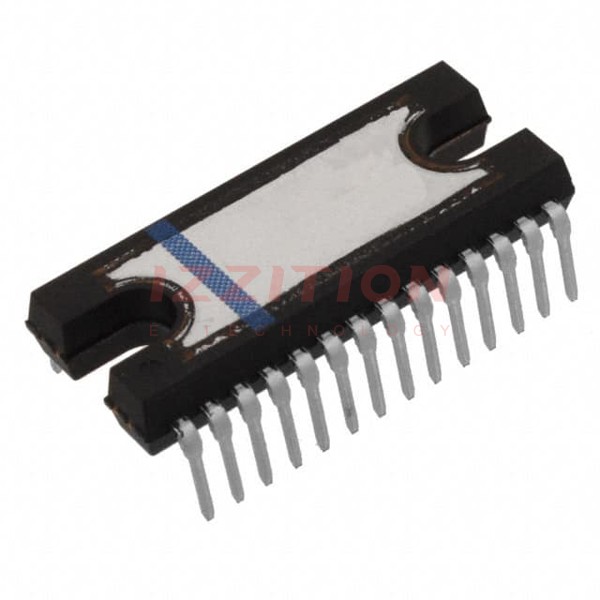

| Part Number | LB11847-E | LB1847-E | LB11847L-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | Bipolar | Bipolar | Bipolar |
| Motor Type - AC, DC | - | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) |
| Interface | Parallel | Parallel | Parallel |
| Technology | Bipolar | Bipolar | Bipolar |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 | - | 1, 1/2, 1/4, 1/8, 1/16 |
| Applications | General Purpose | General Purpose | General Purpose |
| Current - Output | 1.5A | 1.5A | 1.5A |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 45V | 10V ~ 45V | 10V ~ 45V |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) Exposed Pad | 28-SDIP (0.500", 12.70mm) Exposed Pad | 28-SDIP (0.500", 12.70mm) Exposed Pad |
| Supplier Device Package | 28-HDIP | 28-HDIP | 28-HDIP |
