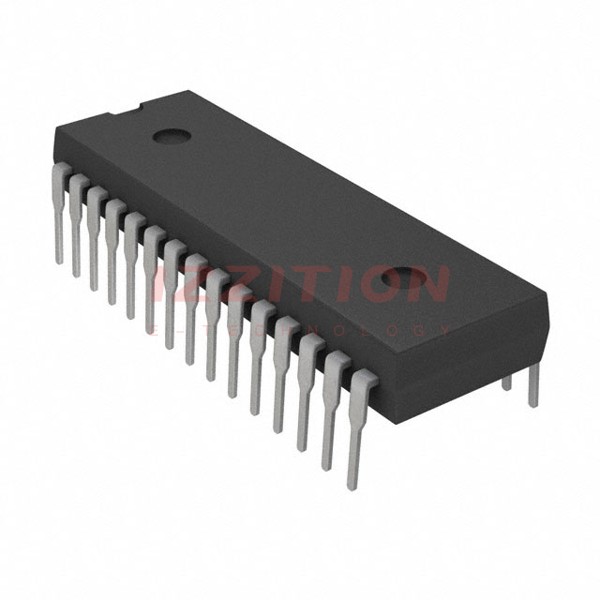

| Part Number | LB11822-E | LB11826-E |
|---|---|---|
| Manufacturer | onsemi | Sanyo |
| Product Status | Obsolete | Obsolete |
| Motor Type - Stepper | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) | Half Bridge (3) |
| Interface | PWM | PWM |
| Technology | - | - |
| Step Resolution | - | - |
| Applications | General Purpose | General Purpose |
| Current - Output | 3.1A | 2.5A |
| Voltage - Supply | 9.5V ~ 28V | 9.5V ~ 28V |
| Voltage - Load | 9.5V ~ 28V | 9.5V ~ 28V |
| Operating Temperature | -20°C ~ 80°C (TA) | -20°C ~ 80°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 30-SDIP (0.400", 10.16mm) | 28-SDIP (0.500", 12.70mm) |
| Supplier Device Package | 30-PDIP | 28-HDIP |
