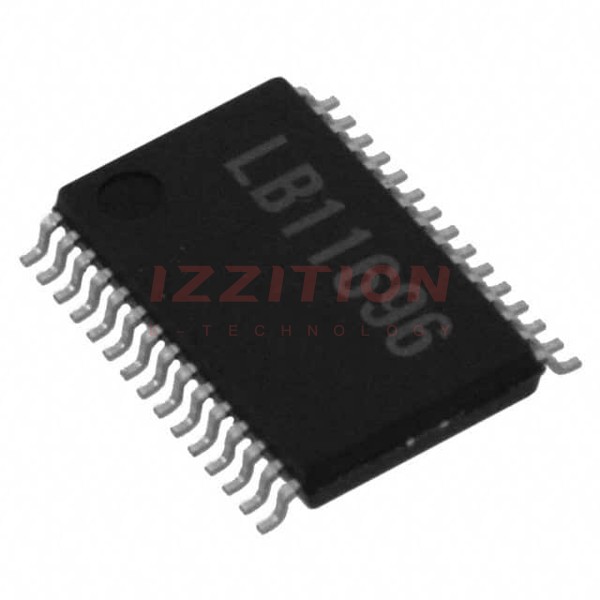

| Part Number | LB11696V-TLM-E | LB11696V-TRM-E | LB11697V-TLM-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) |
| Interface | PWM | PWM | PWM |
| Technology | Bipolar | Bipolar | - |
| Step Resolution | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Current - Output | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V, 8V ~ 17V | 4.5V ~ 5.5V, 8V ~ 17V | 4.5V ~ 5.5V, 8V ~ 17V |
| Voltage - Load | - | - | - |
| Operating Temperature | -20°C ~ 100°C (TA) | -20°C ~ 100°C (TA) | -20°C ~ 100°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 30-LSSOP (0.220", 5.60mm Width) | 30-LSSOP (0.220", 5.60mm Width) | 30-LSSOP (0.220", 5.60mm Width) |
| Supplier Device Package | 30-SSOP | 30-SSOP | 30-SSOP |
