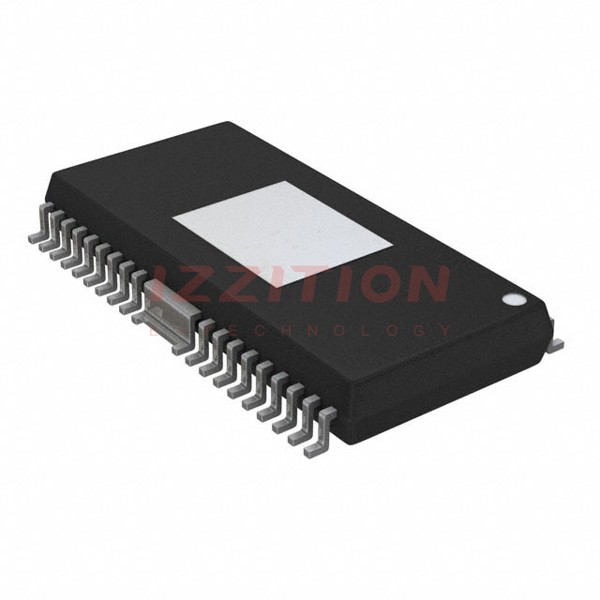

| Part Number | LB11693H-TLM-E | LB11693H-TRM-E | LB11693JH-TLM-E | LB11683H-TLM-E |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Sanyo |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) |
| Interface | PWM | PWM | PWM | Parallel |
| Technology | - | - | - | Bipolar |
| Step Resolution | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | 1.8A | 1.8A | 1.8A | 1.5A |
| Voltage - Supply | 9.5V ~ 28V | 9.5V ~ 28V | 8V ~ 28V | 5.5V ~ 13.8V |
| Voltage - Load | 9.5V ~ 28V | 9.5V ~ 28V | 8V ~ 28V | 5.5V ~ 13.8V |
| Operating Temperature | -30°C ~ 100°C (TA) | -30°C ~ 100°C (TA) | -40°C ~ 85°C (TA) | -30°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs | 36-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs | 36-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs | 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs |
| Supplier Device Package | 36-HSOP-R | 36-HSOP-R | 36-HSOP-R | 28-HSOP-HC |
