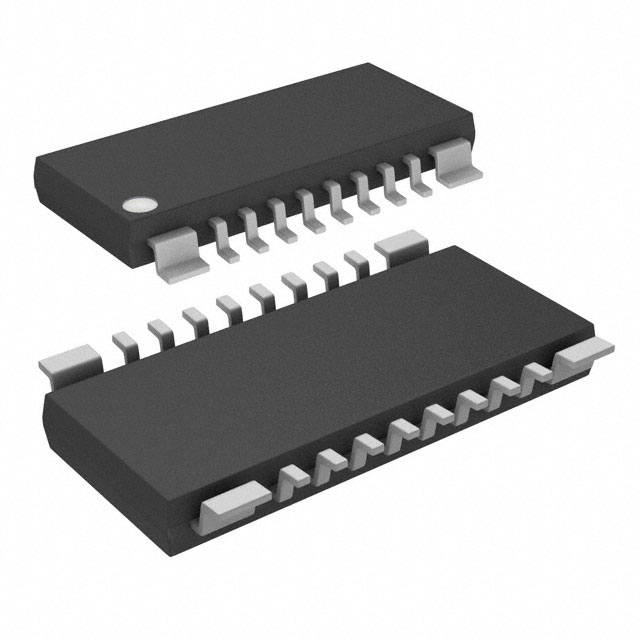

| Part Number | LA6584M-MPB-H | LA6584M-MPB-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (2) | Half Bridge (2) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Logic | Logic |
| Load Type | Inductive | Inductive |
| Technology | Bipolar | Bipolar |
| Rds On (Typ) | - | - |
| Current - Output / Channel | 1.6A | 1.6A |
| Current - Peak Output | - | - |
| Voltage - Supply | 2.8V ~ 14V | 2.8V ~ 14V |
| Voltage - Load | 2.8V ~ 14V | 2.8V ~ 14V |
| Operating Temperature | -30°C ~ 90°C (TA) | -30°C ~ 90°C (TA) |
| Features | - | - |
| Fault Protection | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs | 16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs |
| Supplier Device Package | 16-MFPFS | 16-MFPFS |
