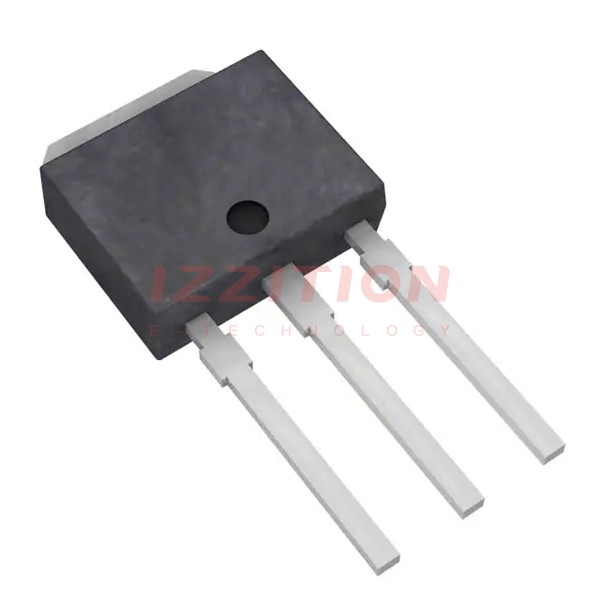

| Part Number | L88MS05TL-TL-E | L88M05TL-TL-E | L88MS05T-TL-E |
|---|---|---|---|
| Manufacturer | onsemi | Sanyo | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | - |
| Output Type | Fixed | Fixed | - |
| Number of Regulators | 1 | 1 | - |
| Voltage - Input (Max) | 17V | 17V | - |
| Voltage - Output (Min/Fixed) | 5V | 5V | - |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.3V @ 150mA | 0.3V @ 150mA | - |
| Current - Output | 500mA | 500mA | - |
| Current - Quiescent (Iq) | 5 mA | 5 mA | - |
| Current - Supply (Max) | 50 mA | 50 mA | - |
| PSRR | 74dB (120Hz) | 65dB (120Hz) | - |
| Control Features | Enable | - | - |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | - |
| Mounting Type | Through Hole | Through Hole | - |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | - |
| Supplier Device Package | TP-3H | IPAK/TP3H | - |
