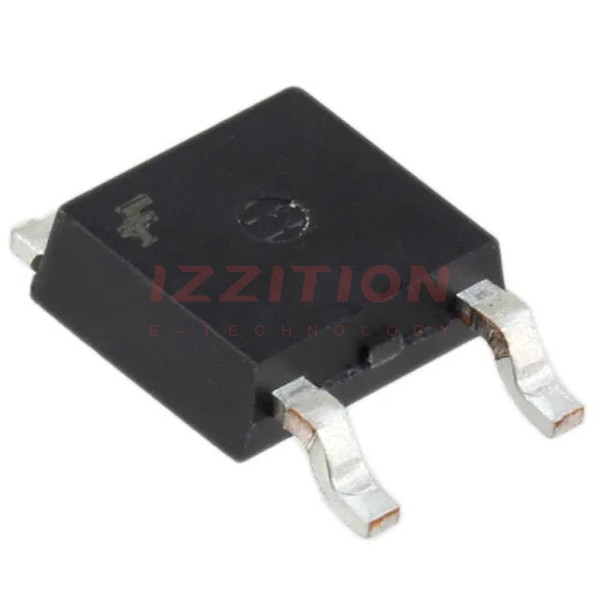

| Part Number | KSH44H11TM | KSH45H11TM | KSH44H11TF |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Obsolete |
| Transistor Type | NPN | PNP | NPN |
| Current - Collector (Ic) (Max) | 8 A | 8 A | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 80 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A | 1V @ 400mA, 8A | 1V @ 400mA, 8A |
| Current - Collector Cutoff (Max) | 10µA | 10µA | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 4A, 1V | 60 @ 2A, 1V | 40 @ 4A, 1V |
| Power - Max | 1.75 W | 1.75 W | 1.75 W |
| Frequency - Transition | 50MHz | 40MHz | 50MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-Pak | TO-252-3 (DPAK) | TO-252-3 (DPAK) |
