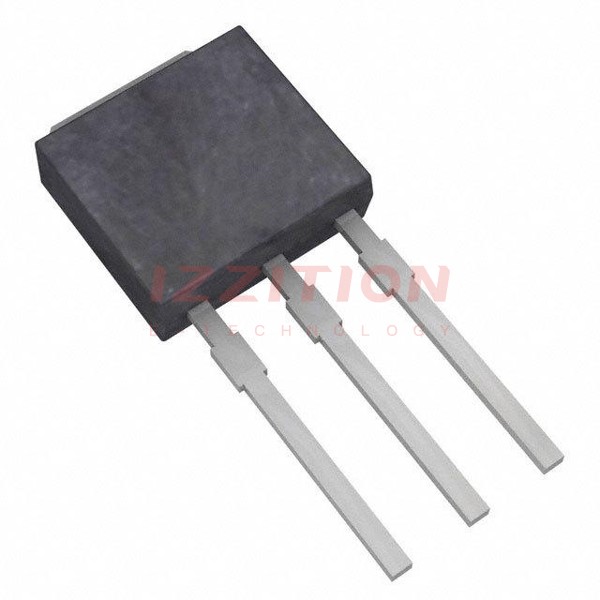

onsemi-KSH41CITU - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	6 A
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	1.5V @ 600mA, 6A
Current - Collector Cutoff (Max):	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	15 @ 3A, 4V
Power - Max:	1.75 W
Frequency - Transition:	3MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:	I-PAK

onsemi KSH41CITU
