| Part Number | KSH350TF | KSH50TF | KSH350TM | KSH30TF | KSH340TF |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | NPN | PNP | PNP | NPN |
| Current - Collector (Ic) (Max) | 500 mA | 1 A | 500 mA | 1 A | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 300 V | 400 V | 300 V | 40 V | 300 V |
| Vce Saturation (Max) @ Ib, Ic | - | 1V @ 200mA, 1A | - | 700mV @ 125mA, 1A | - |
| Current - Collector Cutoff (Max) | 100µA | 200µA | 100µA | 50µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 50mA, 10V | 30 @ 300mA, 10V | 30 @ 50mA, 10V | 15 @ 1A, 4V | 30 @ 50mA, 10V |
| Power - Max | 1.56 W | 15 W | 1.56 W | 1.56 W | 1.56 W |
| Frequency - Transition | - | 10MHz | - | 3MHz | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

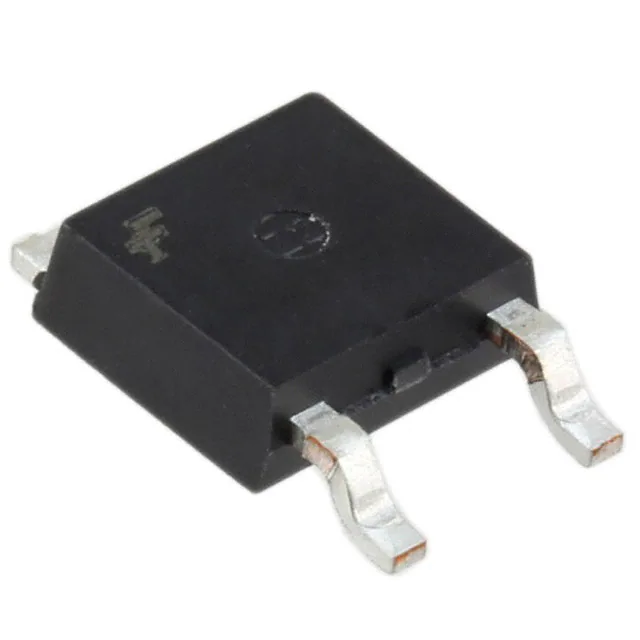

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-Pak | TO-252-3 (DPAK) | D-Pak | D-Pak | TO-252-3 (DPAK) |
