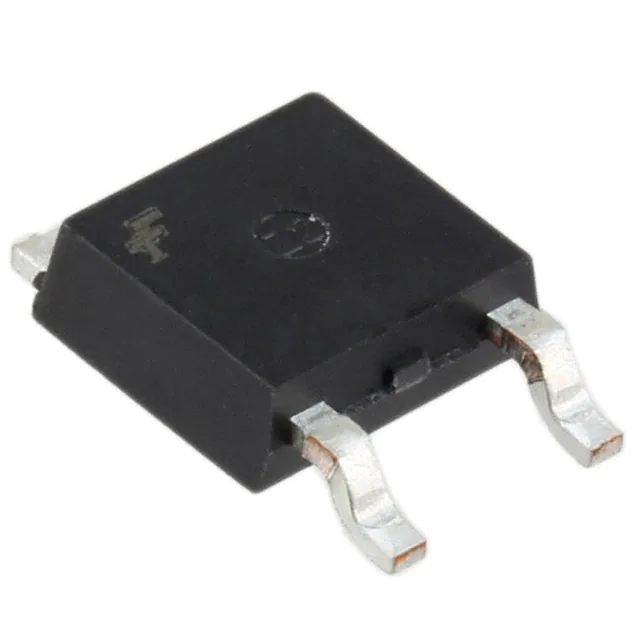

| Part Number | KSH32CTF | KSH42CTF | KSH31CTF |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | NPN |
| Current - Collector (Ic) (Max) | 3 A | 6 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 375mA, 3A | 1.5V @ 600mA, 6A | 1.2V @ 375mA, 3A |
| Current - Collector Cutoff (Max) | 50µA | 50µA | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 3A, 4V | 15 @ 3A, 4V | 10 @ 3A, 4V |
| Power - Max | 1.56 W | 1.75 W | 1.56 W |
| Frequency - Transition | 3MHz | 3MHz | 3MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-Pak | D-Pak | D-Pak |
