| Part Number | KSH3055TM | KSH3055TF |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 10 A | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 8V @ 3.3A, 10A | 8V @ 3.3A, 10A |
| Current - Collector Cutoff (Max) | 50µA | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 4A, 4V | 20 @ 4A, 4V |
| Power - Max | 1.75 W | 1.75 W |
| Frequency - Transition | 2MHz | 2MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

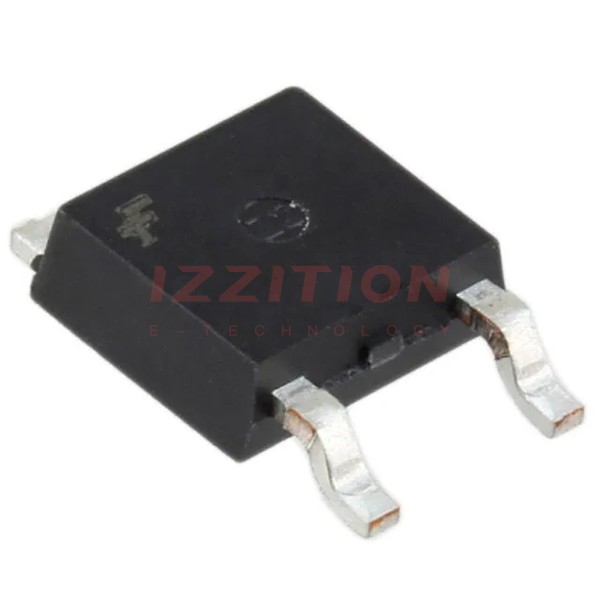

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-Pak | D-Pak |
