Please send RFQ , we will respond immediately.

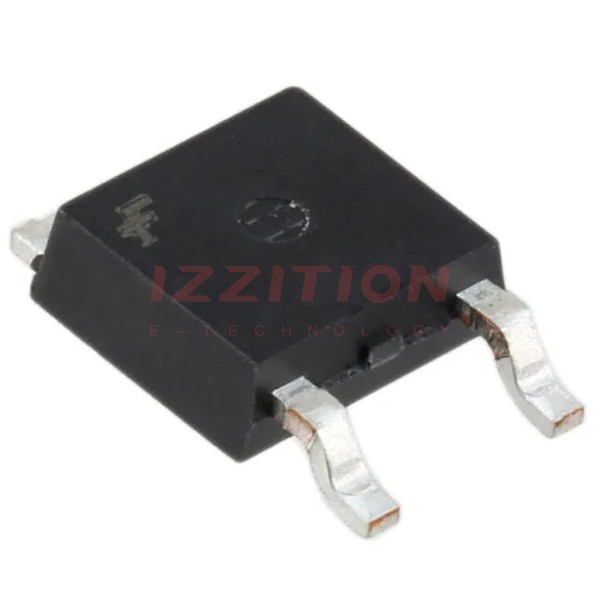

| Part Number | KSH112GTM_SB82051 | KSH112GTM_NB82051 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | 2 A | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 4A | 3V @ 40mA, 4A |
| Current - Collector Cutoff (Max) | 20µA | 20µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 2A, 3V | 1000 @ 2A, 3V |
| Power - Max | 1.75 W | 1.75 W |
| Frequency - Transition | 25MHz | 25MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-Pak | D-Pak |
