onsemi-KSD2012YYDTU - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	3 A
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 200mA, 2A
Current - Collector Cutoff (Max):	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 500mA, 5V
Power - Max:	25 W
Frequency - Transition:	3MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole

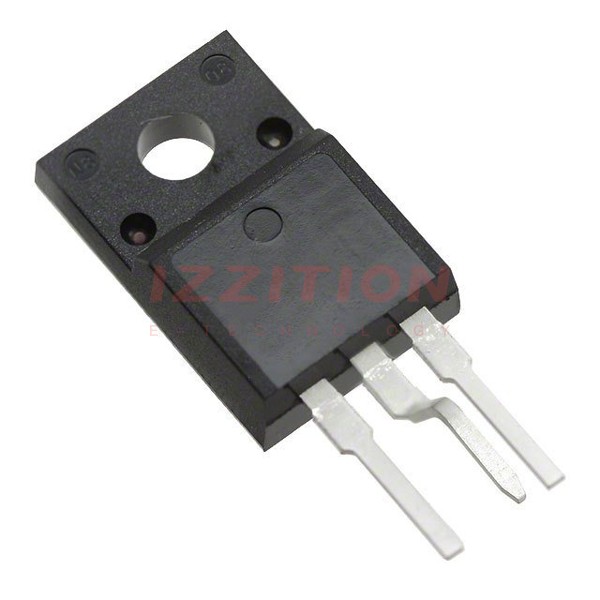

Package / Case:	TO-220-3 Full Pack, Formed Leads
Supplier Device Package:	TO-220F-3 (Y-Forming)

onsemi KSD2012YYDTU
