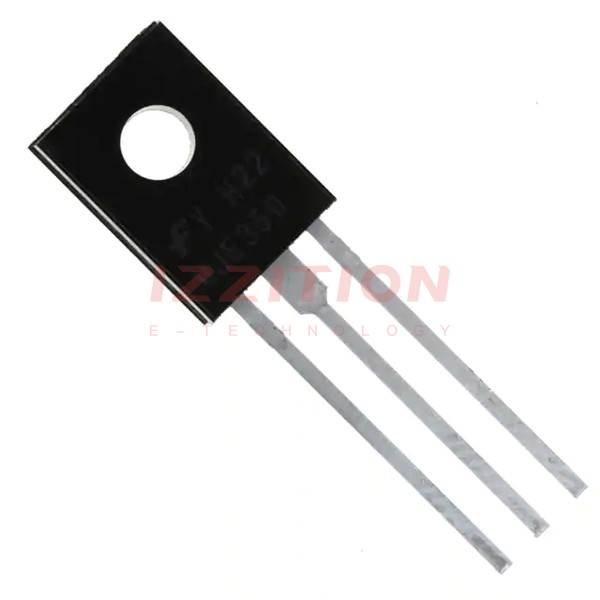

| Part Number | KSC2688OS | KSC2688YS | KSC2682OS |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 200 mA | 200 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 300 V | 300 V | 180 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 5mA, 50mA | 1.5V @ 5mA, 50mA | 500mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 100µA (ICBO) | 100µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 10mA, 10V | 100 @ 10mA, 10V | 100 @ 10mA, 5V |
| Power - Max | 1.25 W | 1.25 W | 1.2 W |
| Frequency - Transition | 80MHz | 80MHz | 200MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 |
| Supplier Device Package | TO-126 | TO-126 | TO-126-3 |
