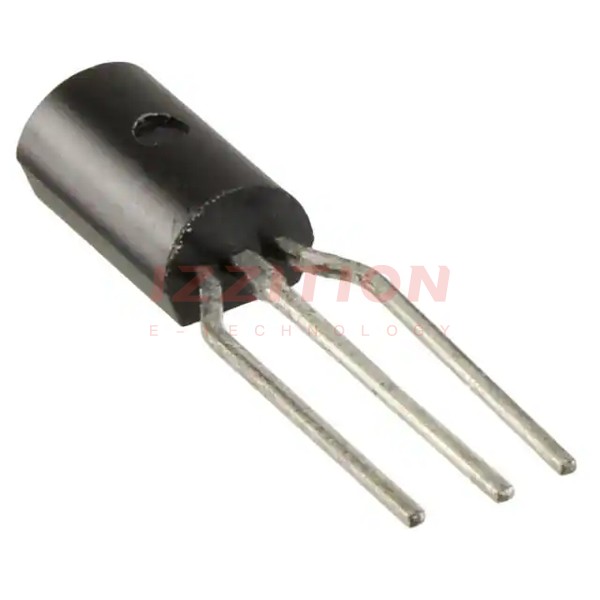

| Part Number | KSC2330RBU | KSC2330YBU | KSC2310RBU | KSC2330ABU | KSC2330OBU |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 50 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 300 V | 300 V | 150 V | 400 V | 300 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 1mA, 10mA | 500mV @ 1mA, 10mA | 500mV @ 1mA, 10mA | 500mV @ 1mA, 10mA | 500mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 20mA, 10V | 120 @ 20mA, 10V | 40 @ 10mA, 5V | 40 @ 20mA, 10V | 70 @ 20mA, 10V |
| Power - Max | 1 W | 1 W | 800 mW | 1 W | 1 W |
| Frequency - Transition | 50MHz | 50MHz | 100MHz | 50MHz | 50MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 |
