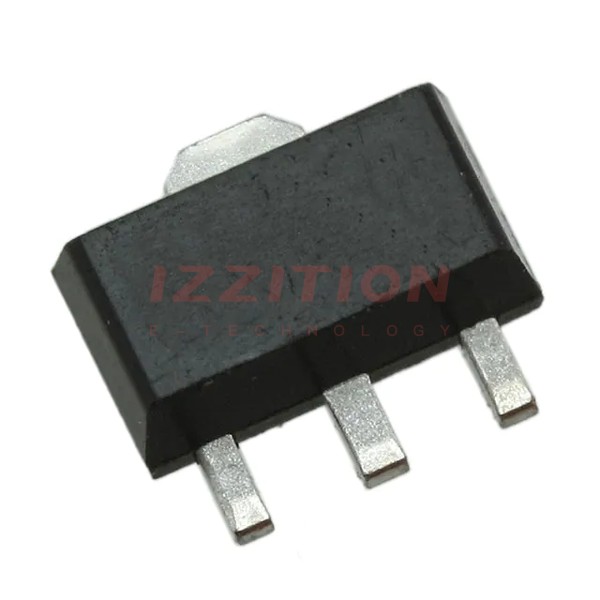

| Part Number | KSA1203YTF | KSA1201YTF | KSA1203OTF |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 1.5 A | 800 mA | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V | 120 V | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 30mA, 1.5A | 1V @ 50mA, 500mA | 2V @ 30mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 500mA, 2V | 120 @ 100mA, 5V | 100 @ 500mA, 2V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | 120MHz | 120MHz | 120MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89-3 | SOT-89-3 | SOT-89-3 |
