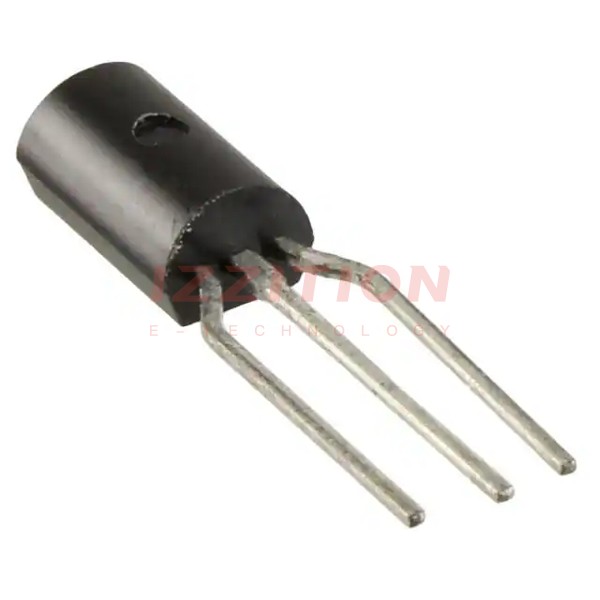

| Part Number | KSA1013YBU | KSA1015YBU | KSA1013OBU | KSA1013RBU |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active | Obsolete |
| Transistor Type | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 1 A | 150 mA | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 160 V | 50 V | 160 V | 160 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 50mA, 500mA | 300mV @ 10mA, 100mA | 1.5V @ 50mA, 500mA | 1.5V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 100nA (ICBO) | 1µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 200mA, 5V | 120 @ 2mA, 6V | 100 @ 200mA, 5V | 60 @ 200mA, 5V |
| Power - Max | 900 mW | 400 mW | 900 mW | 900 mW |
| Frequency - Transition | 50MHz | 80MHz | 50MHz | 50MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 |
