onsemi-KBU4G - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	KBU4G	KBU8G	KBU4K	KBU6G	KBU4M	KBU4J	KBU4A	KBU4B	KBU4D
Manufacturer	onsemi	GeneSiC Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	onsemi
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	400 V	400 V	800 V	400 V	1 kV	600 V	50 V	100 V	200 V
Current - Average Rectified (Io)	4 A	8 A	4 A	6 A	4 A	4 A	4 A	4 A	4 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 4 A	1 V @ 8 A	1 V @ 4 A	1 V @ 6 A	1 V @ 4 A	1 V @ 4 A	1 V @ 4 A	1 V @ 4 A	1 V @ 4 A
Current - Reverse Leakage @ Vr	5 µA @ 50 V	10 µA @ 400 V	5 µA @ 50 V	10 µA @ 50 V	5 µA @ 50 V	5 µA @ 50 V	5 µA @ 50 V	5 µA @ 50 V	5 µA @ 50 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBU	4-SIP, KBU	4-SIP, KBU	4-SIP, KBU	4-SIP, KBU	4-SIP, KBU	4-SIP, KBU	4-SIP, KBU	4-SIP, KBU
Supplier Device Package	KBU	KBU	KBU	KBU	KBU	KBU	KBU	KBU	KBU

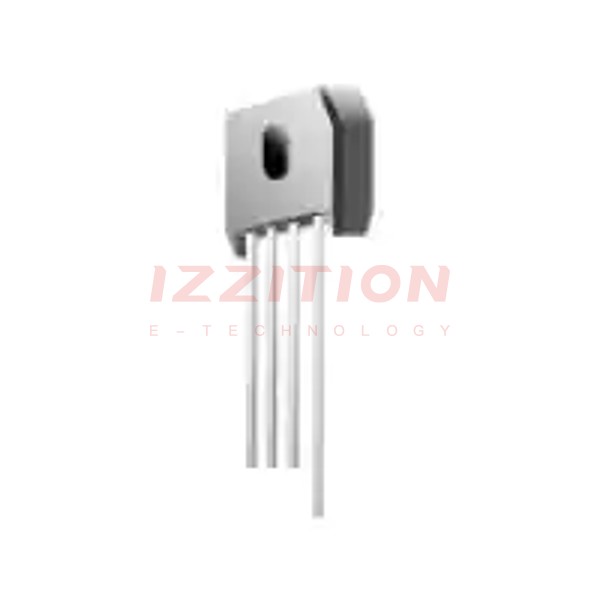

onsemi KBU4G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	400 V
Current - Average Rectified (Io):	4 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 4 A
Current - Reverse Leakage @ Vr:	5 µA @ 50 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, KBU
Supplier Device Package:	KBU
