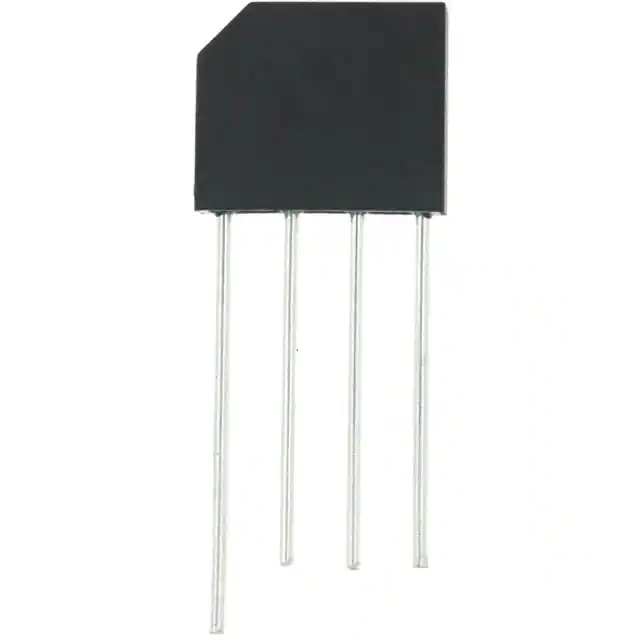

| Part Number | KBL01 | KBL04 | KBL06 | KBL08 | KBL601 | KBL02 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Rectron USA | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 100 V | 400 V | 600 V | 800 V | 50 V | 200 V |
| Current - Average Rectified (Io) | 4 A | 4 A | 4 A | 4 A | 6 A | 4 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 4 A | 1.1 V @ 4 A | 1.1 V @ 4 A | 1.1 V @ 4 A | 1.1 V @ 6 A | 1.1 V @ 4 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 800 V | 10 µA @ 50 V | 5 µA @ 200 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP, KBL | 4-SIP, KBL | 4-SIP, KBL | 4-SIP, KBL | 4-SIP, KBL | 4-SIP, KBL |
| Supplier Device Package | KBL | KBL | KBL | KBL | KBL | KBL |
