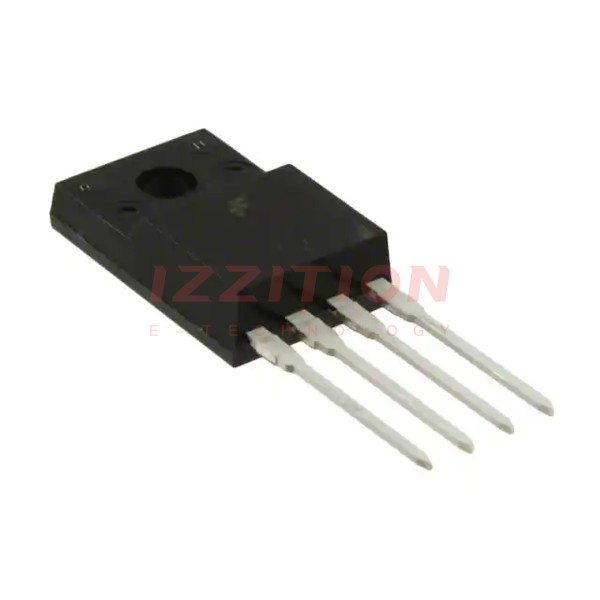

| Part Number | KA78R15CTU | KA78R05CTU | KA78R12CTU |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 35V | 35V | 35V |
| Voltage - Output (Min/Fixed) | 15V | 5V | 12V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.5V @ 1A | 0.5V @ 1A | 0.5V @ 1A |
| Current - Output | 1A | 1A | 1A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | - | - | 55dB |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Over Voltage, Short Circuit | Over Current, Over Temperature, Over Voltage, Short Circuit | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-4 Full Pack | TO-220-4 Full Pack | TO-220-4 Full Pack |
| Supplier Device Package | TO-220F-4L | TO-220F-4L | TO-220F-4 |
