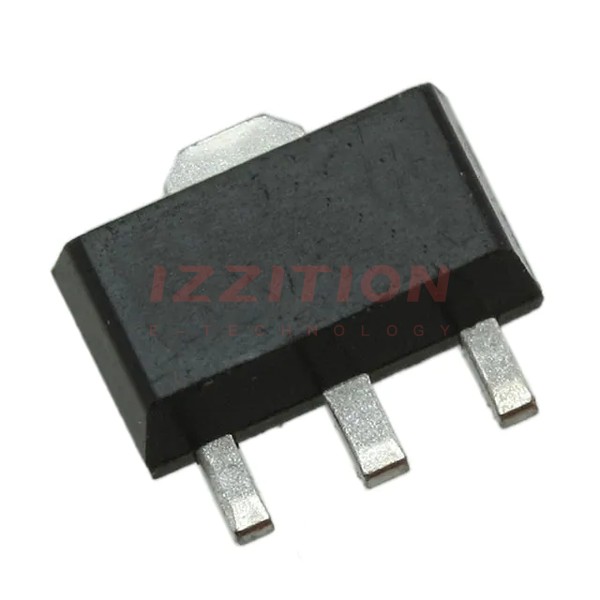

| Part Number | KA78L05AMTF | KA79L05AMTF | KA78L05AZTF | KA78L08AMTF | KA78L05ADTF | KA78L05AIMTF |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Active | Obsolete | Active | Active | Obsolete |
| Output Configuration | Positive | - | Positive | Positive | Positive | Positive |
| Output Type | Fixed | - | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | - | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 30V | - | 30V | 30V | 30V | 30V |
| Voltage - Output (Min/Fixed) | 5V | - | 5V | 8V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | - | 1.7V @ 40mA | 1.7V @ 40mA | - |
| Current - Output | 100mA | - | 100mA | 100mA | 100mA | 100mA |
| Current - Quiescent (Iq) | 5.5 mA | - | 5.5 mA | 5.5 mA | 5.5 mA | 5.5 mA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | 80dB (120Hz) | - | 80dB (120Hz) | 70dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) |
| Control Features | - | - | - | - | - | - |
| Protection Features | Over Temperature, Short Circuit | - | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | - | Through Hole | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-243AA | 8-SOIC (0.154", 3.90mm Width) | TO-243AA |
| Supplier Device Package | SOT-89-3 | - | TO-92-3 | SOT-89-3 | 8-SOIC | SOT-89-3 |
