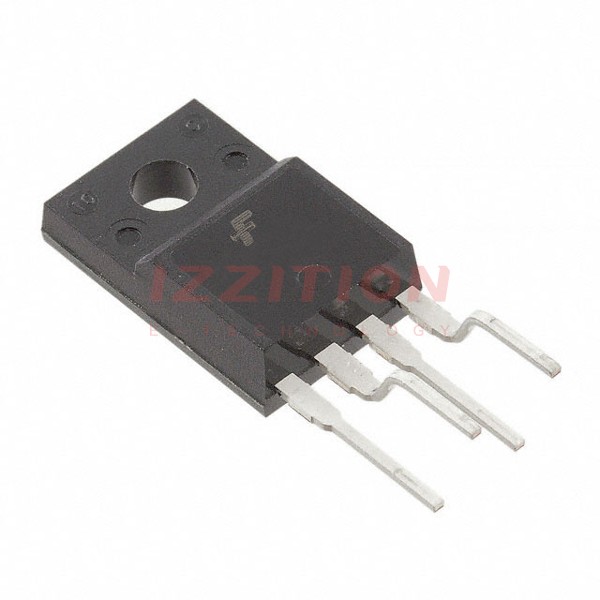

| Part Number | KA5H0380RYDTU | KA5L0380RYDTU | KA5M0380RYDTU | KA5H0280RYDTU |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Obsolete |
| Output Isolation | - | - | - | - |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 800V | 800V | 800V | 800V |
| Topology | Flyback, Forward | Flyback, Forward | Flyback, Forward | Flyback, Forward |
| Voltage - Start Up | 15 V | 15 V | 15 V | 15 V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V | 8.8V ~ 30V |
| Duty Cycle | 67% | 77% | 77% | 67% |
| Frequency - Switching | 100kHz | 50kHz | 67kHz | 100kHz |
| Power (Watts) | - | - | - | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | - | Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Package / Case | TO-220-4 Full Pack, Formed Leads | TO-220-4 Full Pack, Formed Leads | TO-220-4 Full Pack, Formed Leads | TO-220-4 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-4L (Forming) | TO-220F-4L (Forming) | TO-220F-4L (Forming) | TO-220F-4L (Forming) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
