| Part Number | KA5H0165RTU | KA5M0165RTU | KA5H0365RTU | KA1H0165RTU |
|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Active |
| Output Isolation | - | - | - | Non-Isolated |
| Internal Switch(s) | Yes | - | Yes | Yes |
| Voltage - Breakdown | 650V | - | 650V | 650V |
| Topology | Flyback | - | Flyback, Forward | Flyback, Forward |
| Voltage - Start Up | 15 V | - | 15 V | 15 V |
| Voltage - Supply (Vcc/Vdd) | 8.8V ~ 30V | - | 9V ~ 30V | 10V ~ 30V |
| Duty Cycle | 67% | - | 67% | 67% |
| Frequency - Switching | 100kHz | - | 100kHz | 100kHz |
| Power (Watts) | - | - | - | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | - | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | - | Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |

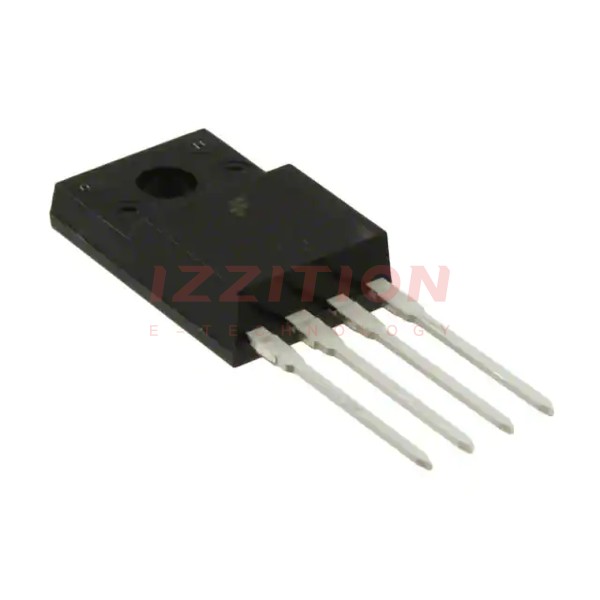

| Package / Case | TO-220-4 Full Pack | - | TO-220-4 Full Pack | TO-220-4 Full Pack |
| Supplier Device Package | TO-220F-4L | - | TO-220F-4L | TO-220F-4 |
| Mounting Type | Through Hole | - | Through Hole | Through Hole |
