onsemi-ISL9K1560G3 - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io) (per Diode):	15A
Voltage - Forward (Vf) (Max) @ If:	2.2 V @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	40 ns
Current - Reverse Leakage @ Vr:	100 µA @ 600 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3

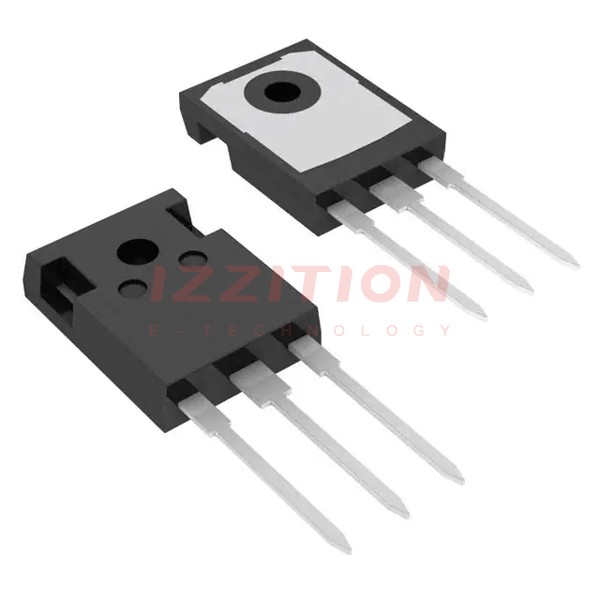

onsemi ISL9K1560G3
