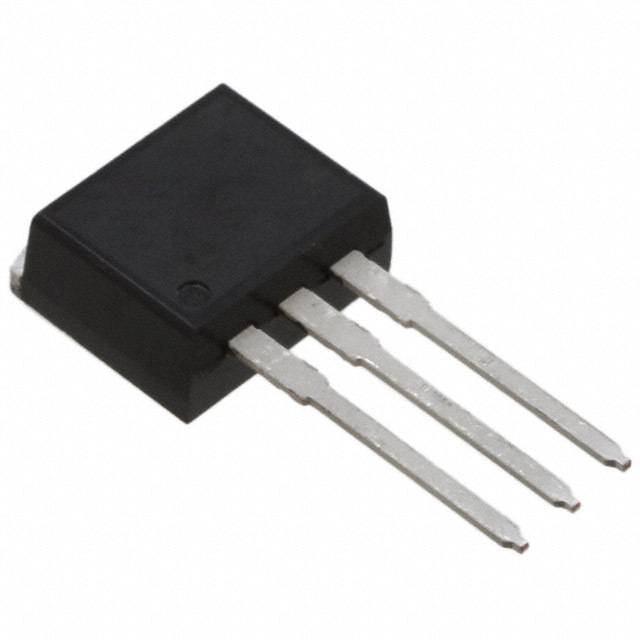

| Part Number | IRLI510ATU | IRLI610ATU |
|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 5.6A (Tc) | 3.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | 5V |
| Rds On (Max) @ Id, Vgs | 440mOhm @ 2.8A, 5V | 1.5Ohm @ 1.65A, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 5 V | 9 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 235 pF @ 25 V | 240 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.8W (Ta), 37W (Tc) | 3.1W (Ta), 33W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | I2PAK (TO-262) | I2PAK (TO-262) |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
