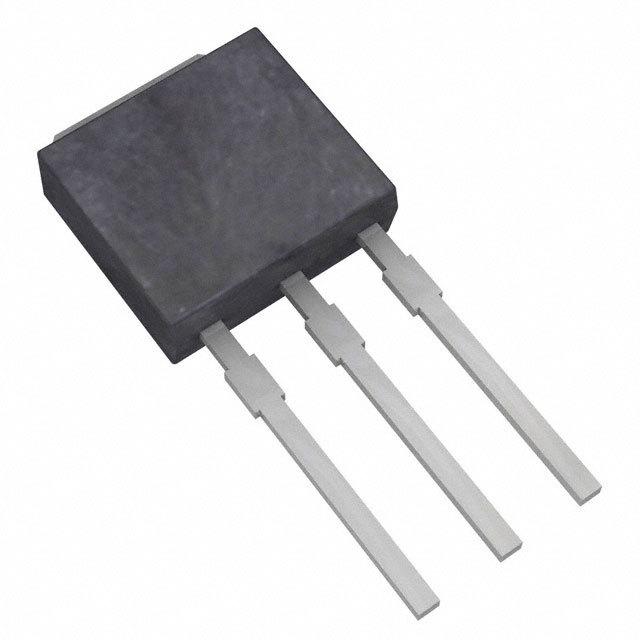

| Part Number | HUFA76629D3 | HUFA76629D3S | HUFA76429D3 | HUFA76609D3 | HUFA76619D3 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Last Time Buy | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 60 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | 20A (Tc) | 20A (Tc) | 10A (Tc) | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 20A, 10V | 52mOhm @ 20A, 10V | 23mOhm @ 20A, 10V | 160mOhm @ 10A, 10V | 85mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 10 V | 46 nC @ 10 V | 46 nC @ 10 V | 16 nC @ 10 V | 29 nC @ 10 V |
| Vgs (Max) | ±16V | ±16V | ±16V | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 1285 pF @ 25 V | 1285 pF @ 25 V | 1480 pF @ 25 V | 425 pF @ 25 V | 767 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 110W (Tc) | 110W (Tc) | 110W (Tc) | 49W (Tc) | 75W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | TO-252, (D-Pak) | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
