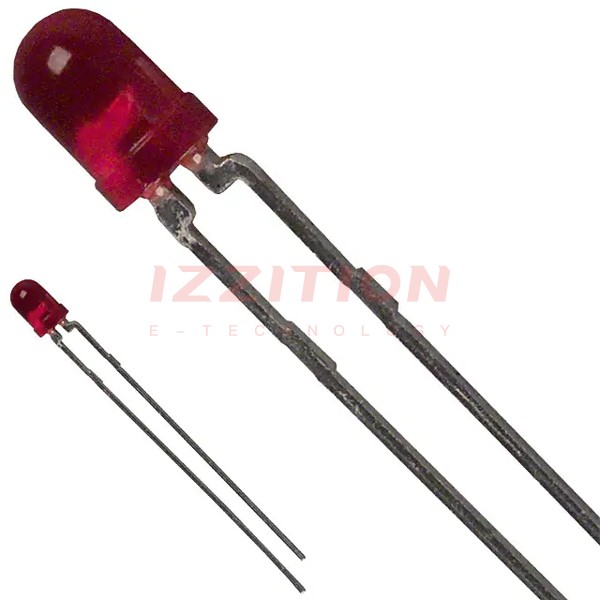

| Part Number | HLMPK150 | HLMPK155 | HLMP-K150 |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Everlight Electronics Co Ltd |
| Product Status | Obsolete | Active | Active |
| Color | Red | Red | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Red | Red | Red |
| Lens Transparency | Diffused | Clear | Diffused |
| Millicandela Rating | 2mcd | 3mcd | 2mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 1.6V | 1.6V | 1.6V |
| Current - Test | 1mA | 1mA | 1mA |
| Viewing Angle | 60° | 45° | 60° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 660nm | 660nm | 660nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | T-1 | T-1 | T-1 |
| Size / Dimension | - | - | - |
| Height (Max) | 6.30mm | 6.30mm | 6.30mm |
