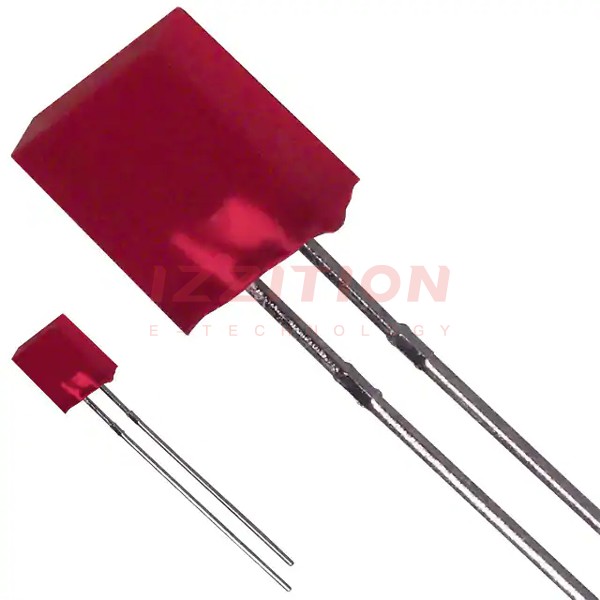

| Part Number | HLMP0301 | HLMP3301 | HLMP1301 | HLMPM301 | HLMP0300 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | onsemi |
| Product Status | Obsolete | Active | Active | Active | Obsolete |
| Color | Red | Red | Red | Yellow | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | Red | Yellow | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 5mcd | 7mcd | 2.5mcd | 7mcd | 2.5mcd |
| Lens Style | Rectangle with Flat Top | Round with Domed Top | Round with Domed Top | Round with Flat Top | Rectangle with Flat Top |
| Lens Size | 7.24mm x 2.42mm | 5mm, T-1 3/4 | 3mm, T-1 | 3.99mm Dia | 7.24mm x 2.42mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.2V | 2V | 2.2V | 2.1V |
| Current - Test | 20mA | 10mA | 20mA | 20mA | 20mA |
| Viewing Angle | 100° | 65° | 90° | 135° | 100° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - | - |
| Wavelength - Peak | 635nm | 635nm | 635nm | 585nm | 635nm |
| Features | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | Rectangular | T-1 3/4 | 3mm | 4mm FLAT TOP | Rectangular |
| Size / Dimension | 7.24mm L x 2.42mm W | - | - | - | 7.24mm L x 2.42mm W |
| Height (Max) | 8.00mm | 8.89mm | 6.30mm | 6.24mm | 8.00mm |
