HCPL3700M
  • Share:

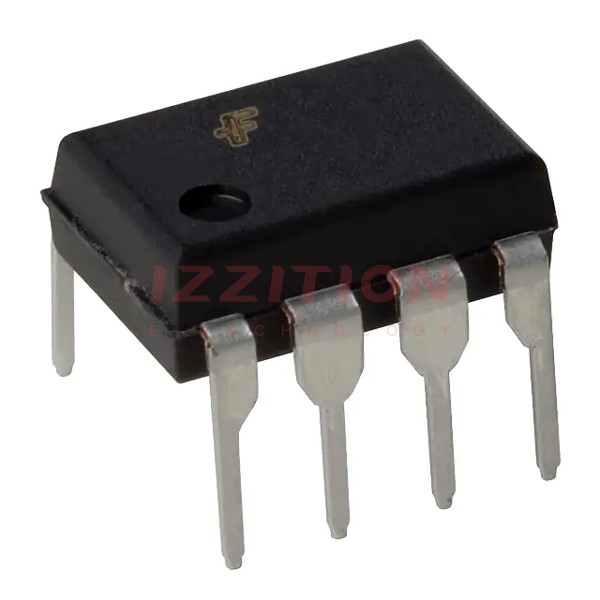

onsemi HCPL3700M

Manufacturer No:
HCPL3700M
Manufacturer:
onsemi
Package:
Tube
Datasheet:
HCPL3700M Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV DARLINGTON 8-DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):-
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):6µs, 25µs
Rise / Fall Time (Typ):45µs, 0.5µs
Input Type:AC, DC
Output Type:Darlington
Voltage - Output (Max):20V
Current - Output / Channel:30mA
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
0 Remaining View Similar

In Stock

$7.92
46

Please send RFQ , we will respond immediately.
