HCPL2630M
  • Share:

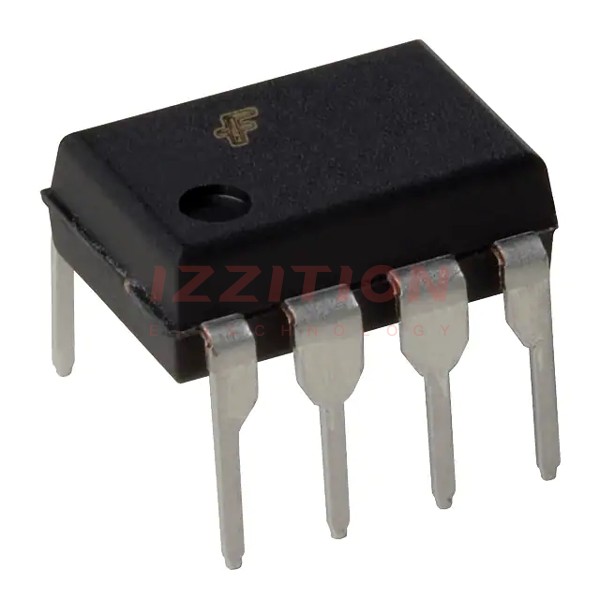

onsemi HCPL2630M

Manufacturer No:
HCPL2630M
Manufacturer:
onsemi
Package:
Tube
Datasheet:
HCPL2630M Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV 2CH OPEN COLL 8DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):10kV/µs (Typ)
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:50 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):30ns, 10ns
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):30mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
0 Remaining View Similar

In Stock

$1.29
623

Please send RFQ , we will respond immediately.
