HCPL2531M
  • Share:

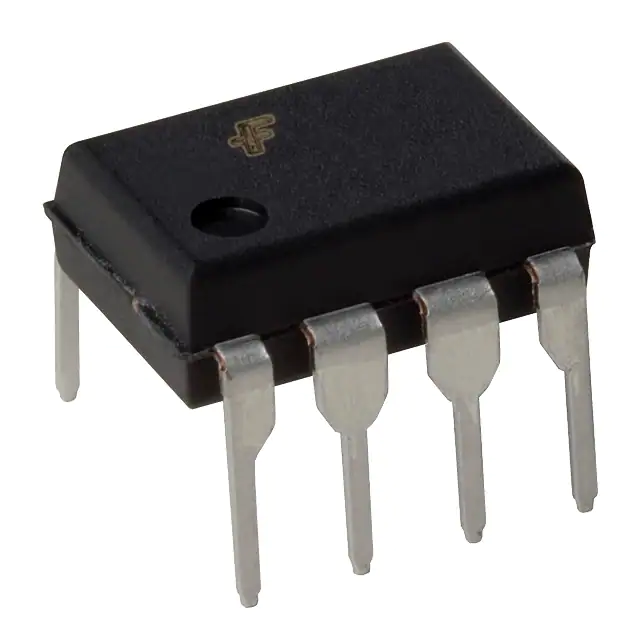

onsemi HCPL2531M

Manufacturer No:
HCPL2531M
Manufacturer:
onsemi
Package:
Tube
Datasheet:
HCPL2531M Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV 2CH TRANS 8DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:2
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):19% @ 16mA
Current Transfer Ratio (Max):50% @ 16mA
Turn On / Turn Off Time (Typ):250ns, 260ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
0 Remaining View Similar

In Stock

$0.93
397

Please send RFQ , we will respond immediately.
