HCPL2503SV
  • Share:

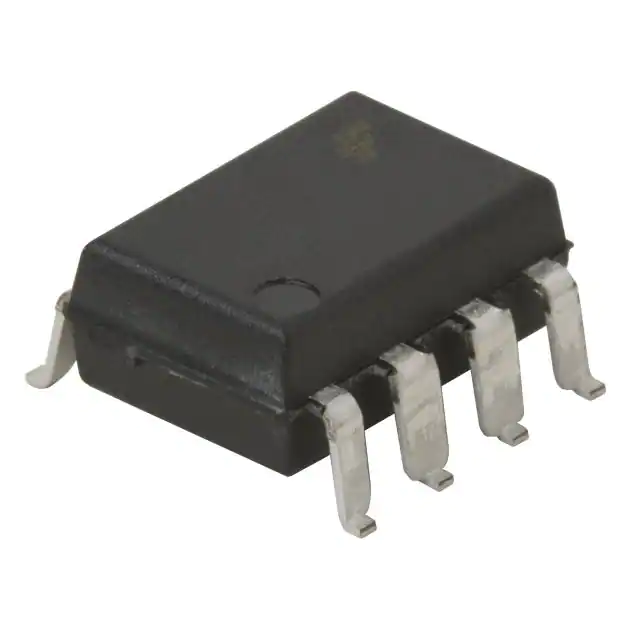

onsemi HCPL2503SV

Manufacturer No:
HCPL2503SV
Manufacturer:
onsemi
Package:
Tube
Datasheet:
HCPL2503SV Datasheet
ECAD Model:
-
Description:
OPTOISO 2.5KV TRANS W/BASE 8SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):12% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):450ns, 300ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
0 Remaining View Similar

In Stock

-
161

Please send RFQ , we will respond immediately.
