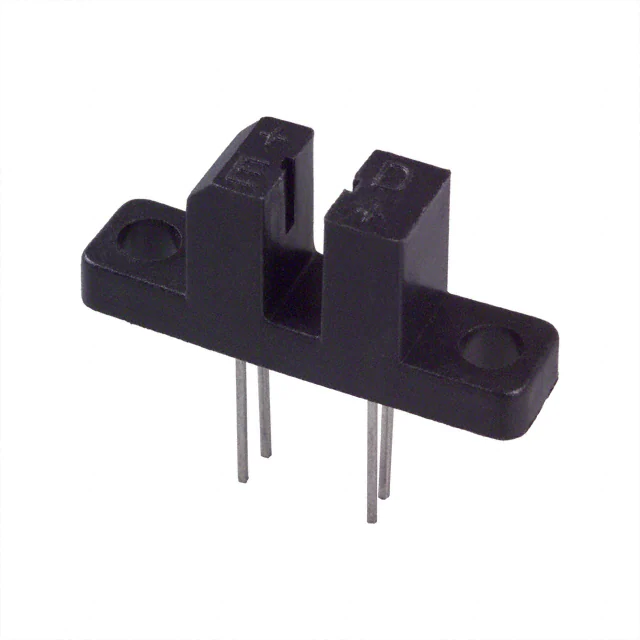

onsemi-H21B1 - Optical Sensors - Photointerrupters - Slot Type - Transistor Output Product Specifications and Latest Quotes

Sensing Distance:	0.118" (3mm)
Sensing Method:	Through-Beam
Output Configuration:	Photodarlington
Current - DC Forward (If) (Max):	50 mA
Current - Collector (Ic) (Max):	40 mA
Voltage - Collector Emitter Breakdown (Max):	30 V
Response Time:	7µs, 45µs
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole, Flange
Package / Case:	Slotted, PC Pins

onsemi H21B1
