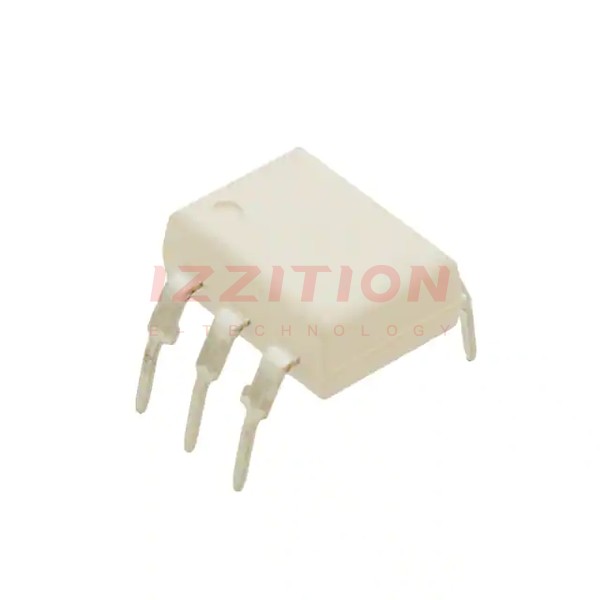

onsemi-H11N1300W - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	7500Vrms
Common Mode Transient Immunity (Min):	-
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	5MHz
Propagation Delay tpLH / tpHL (Max):	330ns, 330ns
Rise / Fall Time (Typ):	-
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	3.2mA
Voltage - Supply:	-
Operating Temperature:	-
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.400", 10.16mm)
Supplier Device Package:	6-DIP

onsemi H11N1300W
