H11B815W
  • Share:

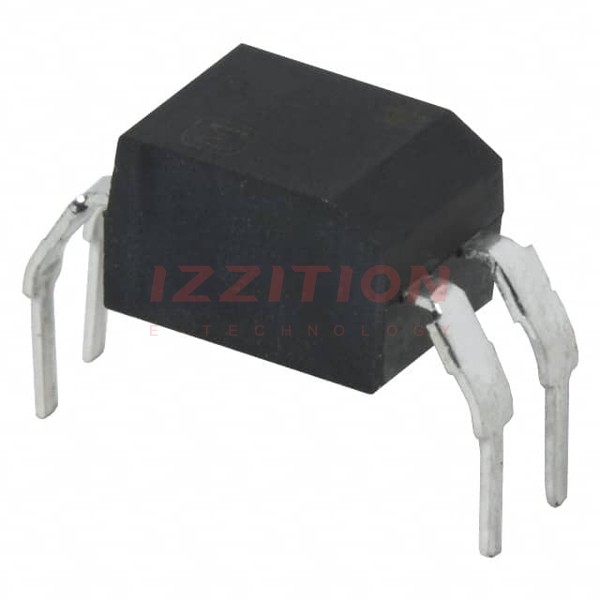

onsemi H11B815W

Manufacturer No:
H11B815W
Manufacturer:
onsemi
Package:
Tube
Datasheet:
H11B815W Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 5KV DARLINGTON 4DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):600% @ 1mA
Current Transfer Ratio (Max):7500% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):300µs, 250µs (Max)
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.400", 10.16mm)
Supplier Device Package:4-DIP
0 Remaining View Similar

In Stock

-
550

Please send RFQ , we will respond immediately.
