onsemi-GBU6G - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBU6G	GBU6J	GBU6K	GBU6M	GBU4G	GBU6A	GBU6B	GBU6D
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	400 V	600 V	800 V	1 kV	400 V	50 V	100 V	200 V
Current - Average Rectified (Io)	6 A	6 A	6 A	6 A	4 A	6 A	6 A	6 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 6 A	1 V @ 6 A	1 V @ 6 A	1 V @ 6 A	1 V @ 4 A	1 V @ 6 A	1 V @ 6 A	1 V @ 6 A
Current - Reverse Leakage @ Vr	5 µA @ 400 V	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 400 V	5 µA @ 50 V	5 µA @ 100 V	5 µA @ 200 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, GBU	4-SIP, GBU	4-SIP, GBU	4-SIP, GBU	4-SIP, GBU	4-SIP, GBU	4-SIP, GBU	4-SIP, GBU
Supplier Device Package	GBU	GBU	GBU	GBU	GBU	GBU	GBU	GBU

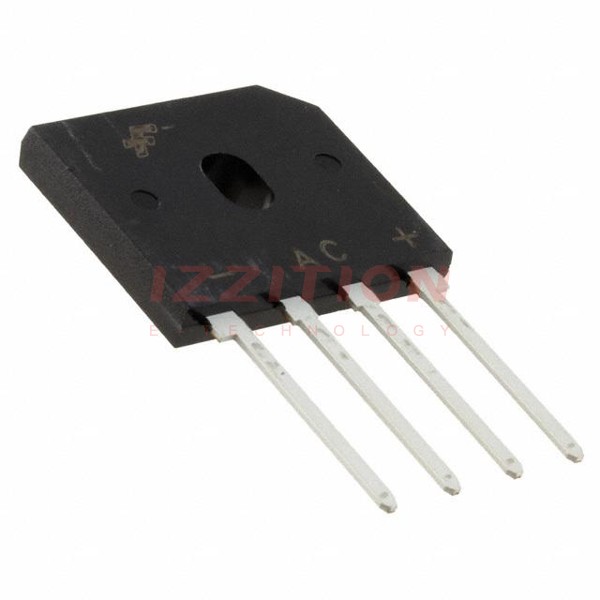

onsemi GBU6G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	400 V
Current - Average Rectified (Io):	6 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 6 A
Current - Reverse Leakage @ Vr:	5 µA @ 400 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, GBU
Supplier Device Package:	GBU
