onsemi-GBPC3508 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC3508	GBPC3508W	GBPC2508	GBPC3501	GBPC3502	GBPC3504	GBPC3506
Manufacturer	onsemi	GeneSiC Semiconductor	onsemi	onsemi	onsemi	SURGE	SURGE
Product Status	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	800 V	800 V	800 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	35 A	35 A	25 A	35 A	35 A	35 A	35 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 17.5 A	1.1 V @ 17.5 A	-	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	QC Terminal	Through Hole	QC Terminal	QC Terminal	QC Terminal	Chassis Mount	Chassis Mount
Package / Case	4-Square, GBPC	4-Square, GBPC-W	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC
Supplier Device Package	GBPC	GBPC-W	GBPC	GBPC	GBPC	GBPC	GBPC

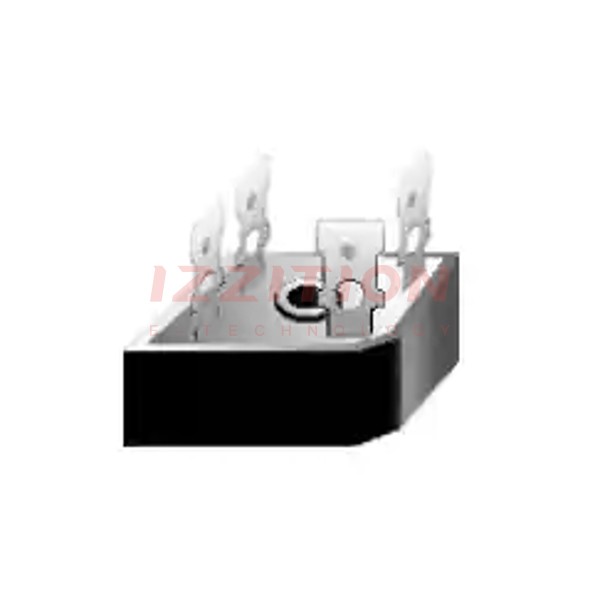

onsemi GBPC3508

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	800 V
Current - Average Rectified (Io):	35 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 800 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	QC Terminal
Package / Case:	4-Square, GBPC
Supplier Device Package:	GBPC
