onsemi-GBPC3502W - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC3502W	GBPC3506W	GBPC3508W	GBPC3504W	GBPC2502W	GBPC3501W	GBPC3502	GBPC3502T
Manufacturer	onsemi	onsemi	GeneSiC Semiconductor	GeneSiC Semiconductor	onsemi	onsemi	onsemi	GeneSiC Semiconductor
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	200 V	600 V	800 V	400 V	200 V	100 V	200 V	200 V
Current - Average Rectified (Io)	35 A	35 A	35 A	35 A	25 A	35 A	35 A	35 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 12.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 12.5 A
Current - Reverse Leakage @ Vr	5 µA @ 200 V	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 400 V	5 µA @ 200 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 200 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	QC Terminal	QC Terminal
Package / Case	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC	4-Square, GBPC-T
Supplier Device Package	GBPC-W	GBPC-W	GBPC-W	GBPC-W	GBPC-W	GBPC-W	GBPC	GBPC-T

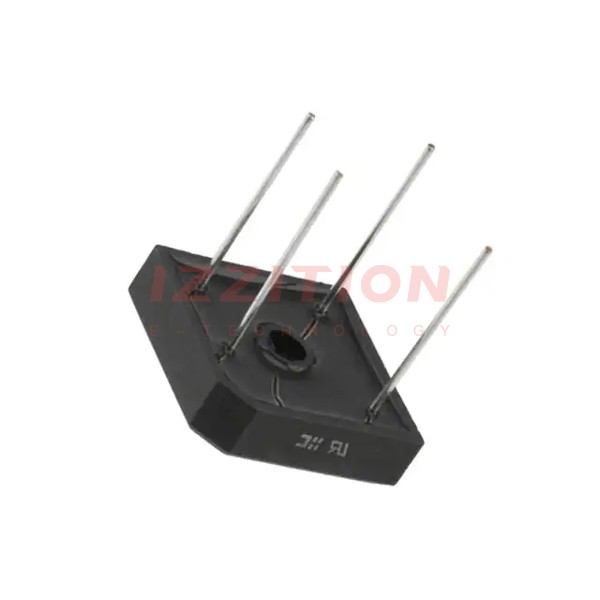

onsemi GBPC3502W

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	200 V
Current - Average Rectified (Io):	35 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 200 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Square, GBPC-W
Supplier Device Package:	GBPC-W
