onsemi-GBPC3502 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC3502	GBPC3502T	GBPC3508	GBPC3506	GBPC3504	GBPC3502W	GBPC2502	GBPC3501
Manufacturer	onsemi	GeneSiC Semiconductor	onsemi	SURGE	SURGE	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	200 V	200 V	800 V	600 V	400 V	200 V	200 V	100 V
Current - Average Rectified (Io)	35 A	35 A	35 A	35 A	35 A	35 A	25 A	35 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 17.5 A	1.1 V @ 12.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 17.5 A	1.1 V @ 12.5 A	1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr	5 µA @ 200 V	5 µA @ 200 V	5 µA @ 800 V	5 µA @ 600 V	5 µA @ 400 V	5 µA @ 200 V	5 µA @ 200 V	5 µA @ 100 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal	QC Terminal	QC Terminal	Chassis Mount	Chassis Mount	Through Hole	QC Terminal	QC Terminal
Package / Case	4-Square, GBPC	4-Square, GBPC-T	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC-W	4-Square, GBPC	4-Square, GBPC
Supplier Device Package	GBPC	GBPC-T	GBPC	GBPC	GBPC	GBPC-W	GBPC	GBPC

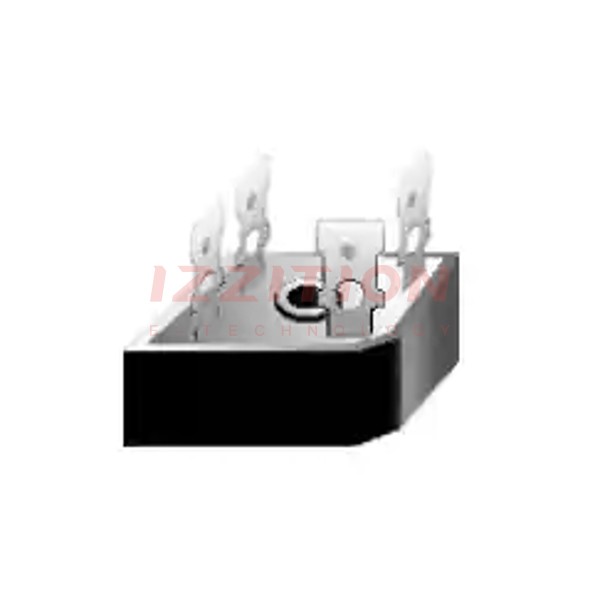

onsemi GBPC3502

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	200 V
Current - Average Rectified (Io):	35 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 200 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	QC Terminal
Package / Case:	4-Square, GBPC
Supplier Device Package:	GBPC
