Please send RFQ , we will respond immediately.

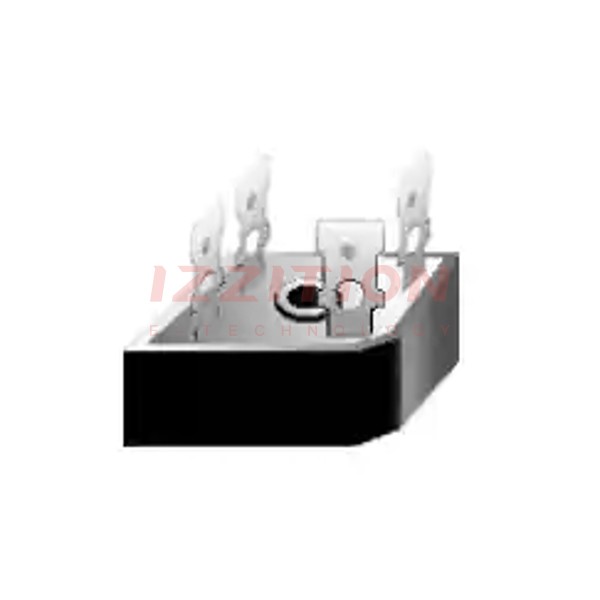

| Part Number | GBPC2510 | GBPC2510W | GBPC3510 | GBPC2510T | GBPC1510 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | GeneSiC Semiconductor | SURGE | GeneSiC Semiconductor | onsemi |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1 kV | 1 kV | 1 kV | 1 kV | 1 kV |
| Current - Average Rectified (Io) | 25 A | 25 A | 35 A | 25 A | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 12.5 A | 1.1 V @ 12.5 A | 1.1 V @ 17.5 A | 1.1 V @ 12.5 A | 1.1 V @ 7.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V | 5 µA @ 1000 V | 5 µA @ 1000 V | 5 µA @ 1000 V | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | QC Terminal | Through Hole | Chassis Mount | Through Hole | QC Terminal |
| Package / Case | 4-Square, GBPC | 4-Square, GBPC-W | 4-Square, GBPC | 4-Square, GBPC | 4-Square, GBPC |
| Supplier Device Package | GBPC | GBPC-W | GBPC | GBPC | GBPC |
