onsemi-GBPC2502W - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC2502W	GBPC2504W	GBPC2508W	GBPC3502W	GBPC1502W	GBPC2501W	GBPC2502
Manufacturer	onsemi	SURGE	GeneSiC Semiconductor	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	200 V	400 V	800 V	200 V	200 V	100 V	200 V
Current - Average Rectified (Io)	25 A	25 A	25 A	35 A	15 A	25 A	25 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 12.5 A	1.1 V @ 12.5 A	1.1 V @ 1.2 A	1.1 V @ 17.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 12.5 A
Current - Reverse Leakage @ Vr	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 800 V	5 µA @ 200 V	5 µA @ 200 V	5 µA @ 100 V	5 µA @ 200 V
Operating Temperature	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	QC Terminal
Package / Case	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC
Supplier Device Package	GBPC-W	GBPC-W	GBPC-W	GBPC-W	GBPC-W	GBPC-W	GBPC

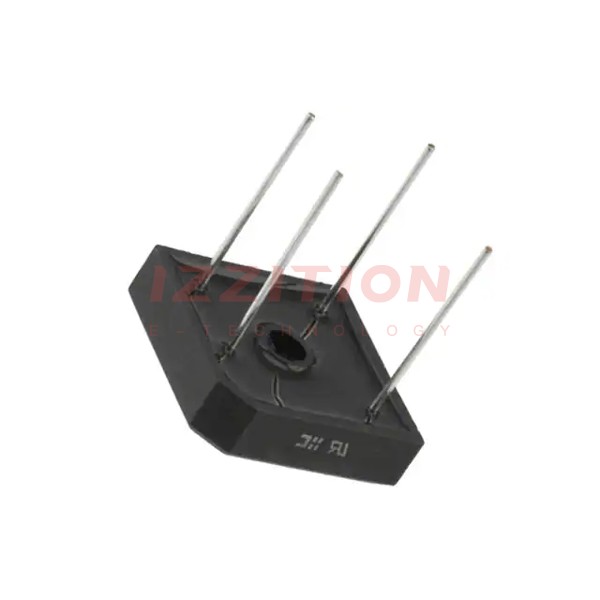

onsemi GBPC2502W

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	200 V
Current - Average Rectified (Io):	25 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 12.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 200 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Square, GBPC-W
Supplier Device Package:	GBPC-W
