onsemi-GBPC1506 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC1506	GBPC1506W	GBPC2506	GBPC1508	GBPC1006	GBPC1206	GBPC1501	GBPC1502	GBPC1504
Manufacturer	onsemi	SURGE	SURGE	onsemi	SURGE	Fairchild Semiconductor	onsemi	onsemi	SURGE
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	600 V	600 V	800 V	600 V	600 V	100 V	200 V	400 V
Current - Average Rectified (Io)	15 A	15 A	25 A	15 A	10 A	12 A	15 A	15 A	15 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 12.5 A	1.1 V @ 7.5 A	1.1 V @ 5 A	1.1 V @ 6 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr	5 µA @ 600 V	5 µA @ 600 V	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 600 V	5 µA @ 600 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V
Operating Temperature	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	QC Terminal	-	Chassis Mount	QC Terminal	-	QC Terminal	QC Terminal	QC Terminal	-
Package / Case	4-Square, GBPC	-	4-Square, GBPC	4-Square, GBPC	-	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC	-
Supplier Device Package	GBPC	-	GBPC	GBPC	-	GBPC	GBPC	GBPC	-

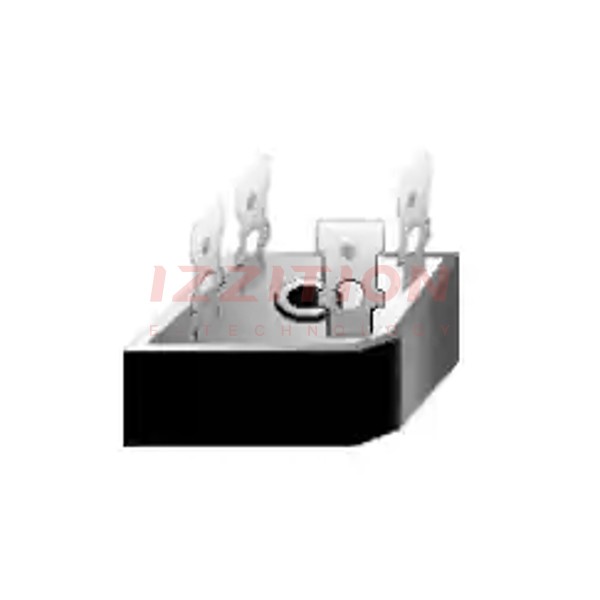

onsemi GBPC1506

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	15 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 600 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	QC Terminal
Package / Case:	4-Square, GBPC
Supplier Device Package:	GBPC
