onsemi-GBPC1502 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC1502	GBPC2502	GBPC1504	GBPC1506	GBPC1508	GBPC1502W	GBPC1202	GBPC1501
Manufacturer	onsemi	onsemi	SURGE	onsemi	onsemi	onsemi	Fairchild Semiconductor	onsemi
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	200 V	200 V	400 V	600 V	800 V	200 V	200 V	100 V
Current - Average Rectified (Io)	15 A	25 A	15 A	15 A	15 A	15 A	12 A	15 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 7.5 A	1.1 V @ 12.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 6 A	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr	5 µA @ 200 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 200 V	5 µA @ 200 V	5 µA @ 100 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal	QC Terminal	-	QC Terminal	QC Terminal	Through Hole	QC Terminal	QC Terminal
Package / Case	4-Square, GBPC	4-Square, GBPC	-	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC-W	4-Square, GBPC	4-Square, GBPC
Supplier Device Package	GBPC	GBPC	-	GBPC	GBPC	GBPC-W	GBPC	GBPC

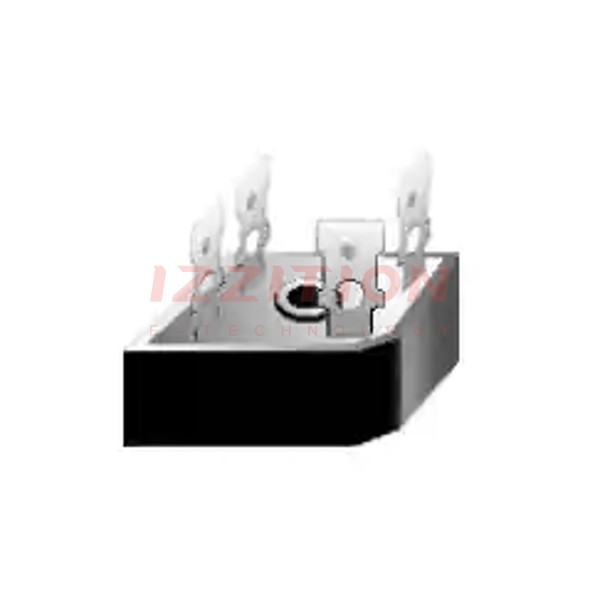

onsemi GBPC1502

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	200 V
Current - Average Rectified (Io):	15 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 200 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	QC Terminal
Package / Case:	4-Square, GBPC
Supplier Device Package:	GBPC
