onsemi-GBPC1501W - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC1501W	GBPC1508W	GBPC1506W	GBPC1504W	GBPC1502W	GBPC2501W	GBPC1201W	GBPC1501
Manufacturer	onsemi	onsemi	SURGE	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	100 V	800 V	600 V	400 V	200 V	100 V	100 V	100 V
Current - Average Rectified (Io)	15 A	15 A	15 A	15 A	15 A	25 A	12 A	15 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 6 A	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr	5 µA @ 100 V	5 µA @ 800 V	5 µA @ 600 V	5 µA @ 400 V	5 µA @ 200 V	5 µA @ 100 V	5 µA @ 100 V	5 µA @ 100 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	-	Through Hole	Through Hole	Through Hole	Through Hole	QC Terminal
Package / Case	4-Square, GBPC-W	4-Square, GBPC-W	-	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC-W	4-Square, GBPC
Supplier Device Package	GBPC-W	GBPC-W	-	GBPC-W	GBPC-W	GBPC-W	GBPC-W	GBPC

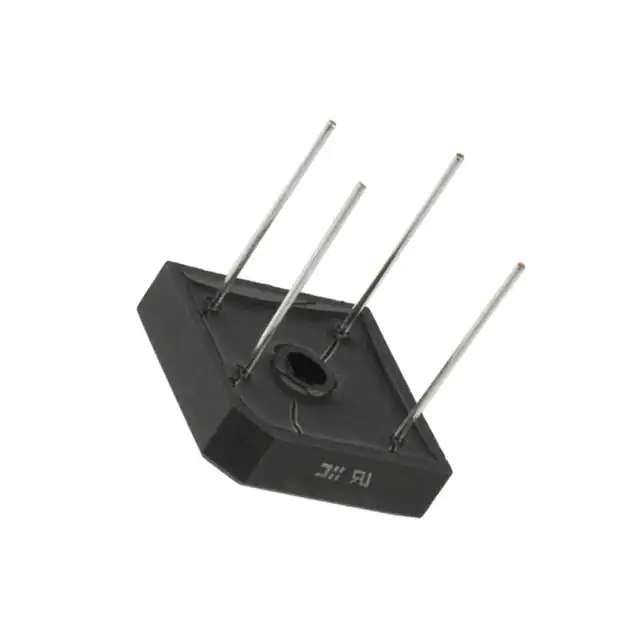

onsemi GBPC1501W

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	100 V
Current - Average Rectified (Io):	15 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 100 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Square, GBPC-W
Supplier Device Package:	GBPC-W
