onsemi-GBPC1204 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBPC1204	GBPC1504	GBPC1206	GBPC1204W	GBPC1004	GBPC1201	GBPC1202
Manufacturer	onsemi	SURGE	Fairchild Semiconductor	onsemi	SURGE	onsemi	Fairchild Semiconductor
Product Status	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	400 V	400 V	600 V	400 V	400 V	100 V	200 V
Current - Average Rectified (Io)	12 A	15 A	12 A	12 A	10 A	12 A	12 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 6 A	1.1 V @ 7.5 A	1.1 V @ 6 A	1.1 V @ 6 A	1.1 V @ 5 A	1.1 V @ 6 A	1.1 V @ 6 A
Current - Reverse Leakage @ Vr	5 µA @ 400 V	5 µA @ 400 V	5 µA @ 600 V	5 µA @ 400 V	5 µA @ 400 V	5 µA @ 100 V	5 µA @ 200 V
Operating Temperature	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal	-	QC Terminal	Through Hole	Through Hole	QC Terminal	QC Terminal
Package / Case	4-Square, GBPC	-	4-Square, GBPC	4-Square, GBPC-W	4-Square, GBPC	4-Square, GBPC	4-Square, GBPC
Supplier Device Package	GBPC	-	GBPC	GBPC-W	GBPC	GBPC	GBPC

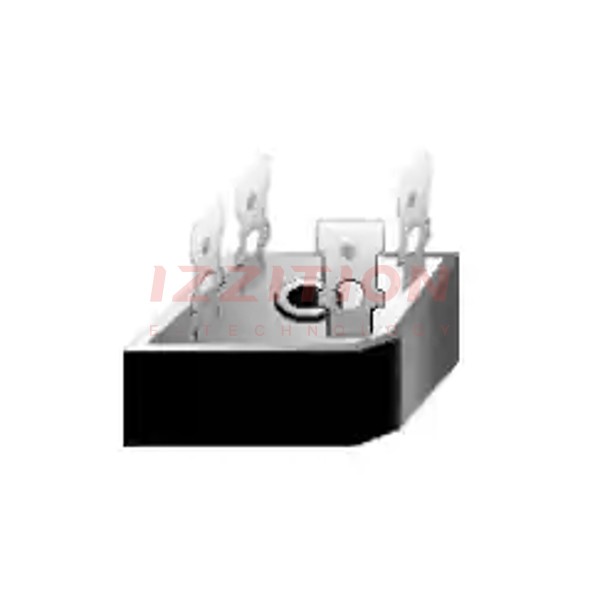

onsemi GBPC1204

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	400 V
Current - Average Rectified (Io):	12 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 6 A
Current - Reverse Leakage @ Vr:	5 µA @ 400 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	QC Terminal
Package / Case:	4-Square, GBPC
Supplier Device Package:	GBPC
